5W UV Laser

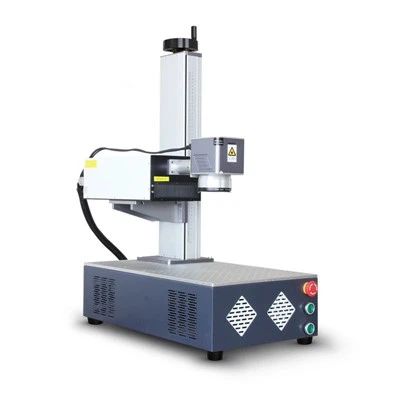

water cooled uv laser marking machine





     Desktop UV laser marker ：Due to its extremely small focused spot and small processing heat-affected zone, UV ultraviolet laser can carry out ultra-fine marking and marking of special materials. It is the first choice product for customers who have higher requirements for marking effects. In addition to copper materials, UV laser is suitable for processing a wider range of materials. Not only the beam quality is good, but the focused spot is smaller, which can achieve ultra-fine marking; it has a wider range of applications; the heat-affected area is extremely small, there will be no thermal effects, and there will be no material burning problems; the marking speed is fast and the efficiency is high; it has the whole machine Stable performance, small size, low power consumption and other advantages.







1. UV laser marker , with its unique low-power laser beam, is especially suitable for the high-end market of ultra-fine processing. It can mark the surface of packaging bottles of cosmetics, medicines, food and other polymer materials. The effect is fine and the marking is clear and firm. Better than ink printing and no pollution.

2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.

3. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.

4. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.

5. Desktop fiber laser marking machine is a standard type in the whole fiber laser marking machine series. Its classical design stands popular since laser marking machine's birth.

6. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.













Model			HJZ-UVDB-3W/5W /10W
Output Power			3W/5W /10W
Frequency			20-150KHZ
Beam Quality			<1.2
Depth of Engraving(based on material)			<0.3mm
Gross Power			600W
Operating Voltage			220V 50/60HZ 5A
Laser Wavelength			355nm
Engraving Range			110×110mm
Repetition Precision			±0.003mm
Engraving Speed			≤8000mm/s
Minimum Line Width			0.01mm
Character Size			0.5-110mm
Cooling System			water Cooling
Cable Length			3m 5m (optional)
Working Temperature Range			10-30ºC
Working Humidity			20%-80%
