Bwt Fiber Laser Source
Mainly use in laser machine.
BWT LASER SOURCE
1
years
Established in 2003, BWT Optoelectronics is a national high - tech enterprise. The firm has set "Let the dream drive the light" as its mission, "Global laser solution leader" as its long - term vision, and "Innovation and change extraordinary" as its core values.
2
Achievement
Over the past decade, BWT Optoelectronics has focused exclusively on developing and commercializing high-power laser devices and systems, including fiber-coupled semiconductor lasers, fiber lasers, and ultrafast lasers. Its products cover visible to near-infrared wavelengths, with power outputs from milliwatts to 10,000 watts, and provide highly integrated solutions.
3
International
With the growing maturity of the global laser market and the dedication of its team, BWT Optoelectronics achieved $200 million in sales in 2020, exporting $30 million worth of products to over 70 countries. This success has established BWT as a leading global laser supplier.
PRODUCT INTRODUCTION
The BWT continuous fiber laser delivers high beam quality, enabling near-diffraction-limited focusing for precision processing. It operates in both continuous and modulated pulse modes, providing precise heat-affected zone control.
With high reliability and efficiency, it supports modulation frequencies up to 5 kHz. Its modular all-fiber design and rugged chassis ensure durability in demanding industrial environments.
Moreover, it offers two working modes, namely continuous mode and modulated pulse mode. The availability of these two modes significantly lessens the heat - affected zone during the processing.
The equipment has reliable performance and high electro - optical conversion efficiency, with a maximum modulation frequency of 5kHz. It uses a modular all - fiber design, encapsulating all optoelectronic devices in a robust chassis to withstand harsh industrial conditions.
This device is applicable to multiple processing fields, including precision processing, 3D printing, sheet metal processing, and lithium - ion battery processing. It has the ability to work on a wide range of materials, such as various types of steels, aluminum - based and nickel - based alloys, titanium alloys, and alumina ceramics.
PRODUCTION PARAMETERS
| Model | CW1000W | CW1500W | CW2000W | CW3000W |
| Laser Power | 1000W | 1500W | 2000W | 3000W |
| Wavelength | 1080±10 nm | 1080±10 nm | 1080±10 nm | 1080±10 nm |
| Cable Length | 12 m can Customized | 12 m can Customized | 12 m can Customized | 12 m can Customized |
| Beam Delivery | QBH or Customized | QBH or Customized | QBH or Customized | QBH or Customized |
| Guide Beam | Red | Red | Red | Red |
| Operation Mode | Continuous or Modulated | Continuous or Modulated | Continuous or Modulated | Continuous or Modulated |
| Power Adjustment Scope | 10%~100% | 10%~100% | 10%~100% | 10%~100% |
| Max Modulation Frequency | 5kHz | 5kHz | 5kHz | 5kHz |
| Voltage | Single Phase,220V,AC,PE,50/60Hz | Single Phase,220V,AC,PE,50/60Hz | Three Phase,380V,AC,PE,50/60Hz | Three Phase,380V,AC,PE,50/60Hz |
| Power Consumption | 4.0kW | 6.0kW | 8.0kW | 12.0kW |
| Control Interface | RS-232/AD | RS-232/AD | RS-232/AD | RS-232/AD |
| Weight | ＜35kg | ＜35kg | ＜80kg | ＜90kg |
| Outline Feature | 153 mm*482mm*380mm | 153 mm*482mm*380mm | 280mm*485mm*700mm | 280mm*485mm*700mm |
PRODUCT APPLICATION
Be used in a wide Uasge of industries.
Welding
Cutting

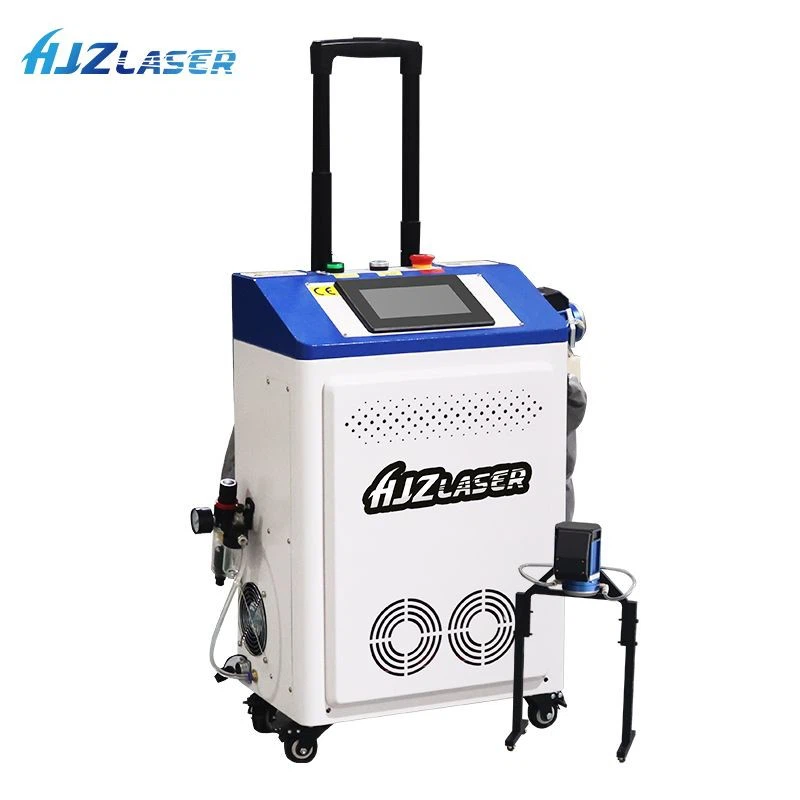

Cleaning
Laser Welding machine
Laser Cutting machine
Laser Cleaning machine
