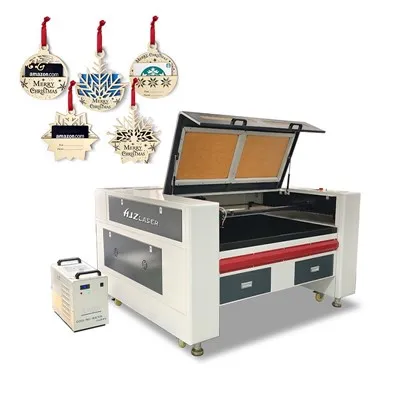

CO2 Laser Engraving Machine
CO2 laser engraving machines are ideal for non-metal materials such as wood, acrylic, leather, and glass. They vaporize the material surface to create detailed patterns, logos, or text. Popular in signage, personalized products, and decorative industries, CO2 systems offer high precision, non-contact marking, and low maintenance.
Why Choose Us
Sales Market
Our machines have been exported to more than 160 countries around the world, including the United States, Germany, Italy, South Korea, Mexico, Peru, Brazil, Saudi Arabia, South Africa, and more.
Certifications
HJZ Laser machines are CE, TUV, and SGS certified. We have also obtained patent certificates for our laser products.
Our Service
Before delivery, each machine is tested for 24 hours to ensure it is in perfect working condition.A user manual and training video are provided. Our laser machines are very easy to operate—after watching the training video, you'll be able to use the machine with ease.
CO2 Laser Engraving Machine
This laser engraving machine directs the emitted light through glass tubes containing gases like carbon dioxide (CO2), helium, nitrogen and hydrogen. These CO2 laser marking machines bounce the light between two mirrors as it grows in intensity. CO2 laser markers are versatile machines and work well with materials like plastic and wood.
Product Parameters
| Engraving Area (mm)W*L | 900*600 | 1200*900 | 1400*1000 | 1600*1000 | 1600*1000 | 1300*2000 | 1600*3000 |
| Laser tube power | 60W 80W 100W 120W 130W 150W | ||||||
| Laser Type | CO2 Sealed laser tube | ||||||
| Engraving Speed | 0-64000mm/min | ||||||
| Cutting Speed | 0-36000mm/min | ||||||
| Resetting positioning accuracy | ≤±0.01mm | ||||||
| Laser Output | 1-100%Software setting | ||||||
| Machine control and drive | Speedy DSP controlling, Stepper motor | ||||||
| Power Supply | AC220V 50HZ | ||||||
| Operating system | DSP off-line control system | ||||||
| Dictate format | *.Plt,*.Dst,*.Dxf,*.Bmp,*.Dwg,*.Al,*Las etc. | ||||||
| Operating Temperature | 5°C-40°C | ||||||
| Operating Humidity | 5-95%(Free of Condensed Water) | ||||||
| Compatible Software | CorelDraw ,AutoCAD transmit directly | ||||||
| Optional Spare Parts | Rotary system, Industrial Chiller, Infrared Locating System, Laser Tube, Up-down clump | ||||||
| Recommended Spare Parts | Laser Tube | ||||||
| Cooling mode | Circulating-water-cooling and protection system | ||||||
1. Imported linear guide rail and high speed stepping motor and driver to make the cutting edge smooth and uncorrugated;
2. Adopt integrated frame structure design to make the machine run steadily without noise;
3. Simple operation, optional carving sequence, processing level, flexible adjustment of laser power, speed and focal length for local or all one-time output;
4. Open software interface, compatible with Autocad, Coreldraw, wentai sculpture, Photoshop and other vector graphics design software;
5. Equipped with water break protector, better protect laser, extend the life of laser, optional foot pedal switch, make your operation more convenient and fast.
6. Exquisite design; Super strength steel plate, industrial grade; Effectively guarantee the smooth operation and service life ofthe equipment;
7. Double guide rail operation; Belt drive; You can choose to configur honeycomb/grid/flat/lift;
8. Patented technology: Unique up-down and down-draft smoke and dust removal system; Blowing protection; Carve cutting materials.
What Can You Make With a CO2 Laser Engraver
Plastic Products
CO2 laser engraving machines can mark and engrave plastic products, such as electronic product casings, plastic pipes, etc.

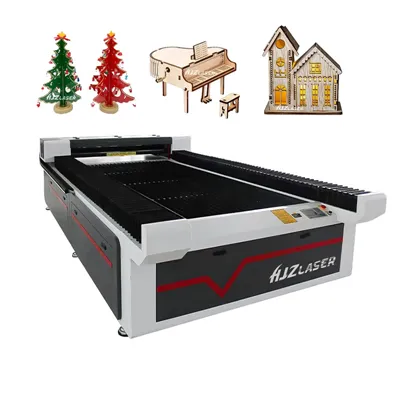

Wood Processing
Mark the surface of wood with letters, patterns, and serial numbers, which is used in furniture, wooden handicrafts, and other industries.
Food Packaging
CO2 laser marking machines are widely used in the food packaging industry and can mark batch codes, date codes, and bar codes on cartons, plastic bottles, glass bottles, and other containers.
Auto Parts
CO2 laser engraving machines are often used to mark and engrave auto parts, such as engine parts, tires, frames, etc., to track production information and provide anti-counterfeiting functions.
