Uv Marking Machine
UV Marking Machine
for Diamond Waistline Marking

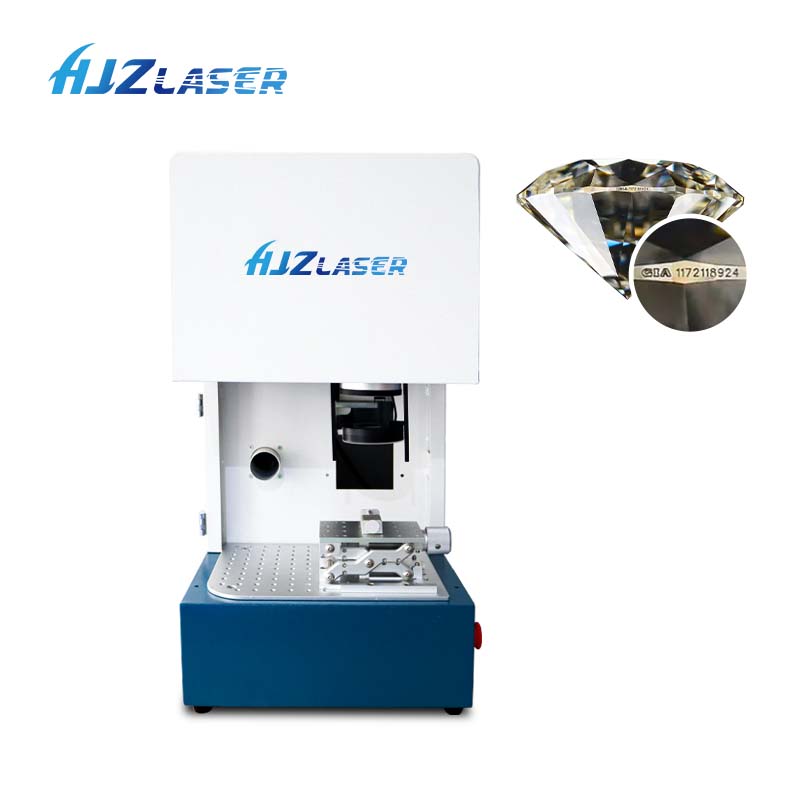

The diamond laser marking machine is a cutting-edge device designed for permanent, high-precision marking on diamonds and other superhard materials. This device is specifically designed for marking the girdle of diamonds.
Main specification:
| Model | HJZ-DB-01 |
| Output Power | 5W |
| Frequency | 20-150KHZ |
| Beam Quality | <1.2 |
| Depth of Engraving(based on material) | <0.3mm |
| Gross Power | 600W |
| Operating Voltage | 220V 50/60HZ 5A |
| Laser Wavelength | 355nm |
| Engraving Range | 110×110mm |
| Repetition Precision | ±0.003mm |
| Engraving Speed | ≤8000mm/s |
| Minimum Line Width | 0.01mm |
| Character Size | 0.5-110mm |
| Cooling System | Air Cooling |
| Cable Length | 3m 5m (optional) |
| Working Humidity | 20%-80% |
Main Functions
Permanent Marking:
Girl Number (GIA Number): This is the core application of a diamond's girdle, engraved with the certificate number from an internationally recognized certification organization (such as GIA, IGI, or HRD). This number corresponds to the certificate and serves as the diamond's identity, ensuring anti-counterfeiting and traceability.
Brand Logo/Trademark: Diamond brands or jewelers can engrave their own logo for brand promotion and anti-counterfeiting purposes.
Special Symbols/Patterns: Customized designs such as hearts and zodiac signs can be engraved to meet customized needs.
Anti-Counterfeiting and Traceability: The girdle number is the most important factor consumers use to verify the authenticity and quality of a diamond, significantly enhancing market transparency and consumer confidence.
Machine details:
Our factory:
