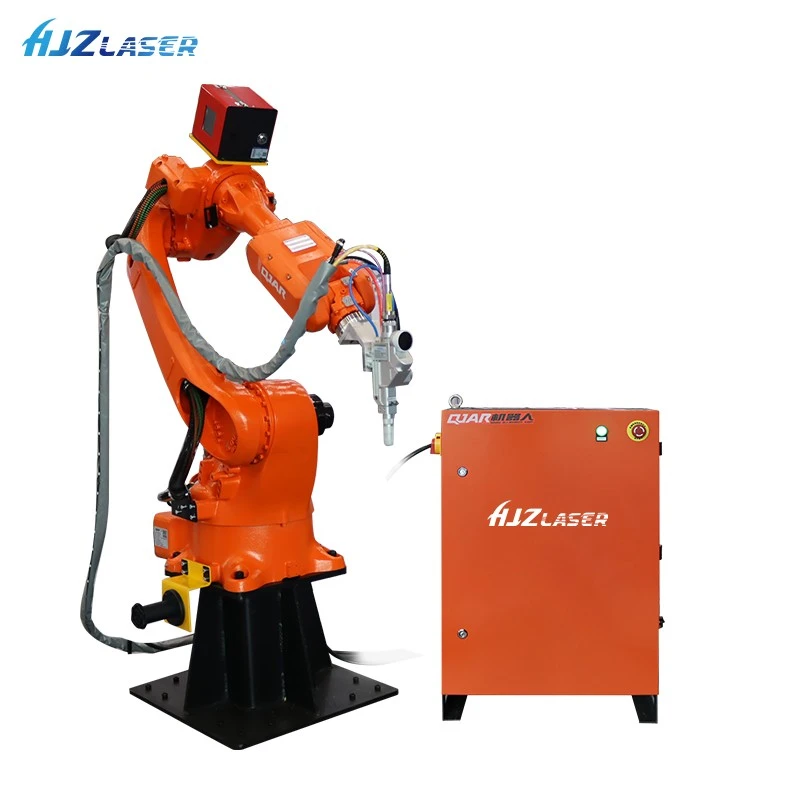

Laser Welding Robot

The Robot Laser Welding Machine integrates a high-precision laser welding system with an intelligent robotic arm, enabling fully automated, flexible, and efficient welding solutions. It is designed for complex, multi-angle, and three-dimensional welding applications across industries such as automotive, aerospace, electronics, and metal fabrication. By combining the accuracy of laser technology with the flexibility of robotic motion, it delivers smooth, consistent welds with minimal heat distortion. The system supports customized welding paths, remote programming, and stable repeatability, greatly improving production efficiency and reducing labor costs.

Send Inquiry

Robot Laser Welding Machine

product-800-800

Products Description

The Robot Laser Welding Machine is an advanced intelligent welding system that combines a high-performance laser source with a multi-axis industrial robot. It provides flexible, precise, and efficient welding for a wide range of materials and complex geometries.

Featuring non-contact laser processing, it ensures minimal deformation, smooth weld seams, and high consistency - ideal for applications that require precision and aesthetics. The robot arm enables automated positioning and 360° multi-angle welding, making it perfect for mass production or customized fabrication.

This system is widely used in automotive manufacturing, metal furniture, kitchenware, aerospace, and electronic components industries, delivering high-speed, stable, and clean welding performance.

Products Specifications

Item	Parameter
Laser Type	Fiber Laser
Laser Power Options	1000W / 1500W / 2000W / 3000W
Laser Source Brand	Raycus / MAX / IPG (Optional)
Wavelength	1070 ± 10 nm
Robot Arm	6-Axis Industrial Robot
Positioning Accuracy	±0.03 mm
Repeatability	±0.02 mm
Welding Head	Automatic focusing laser welding head with wobble function
Cooling System	Water Cooling
Welding Mode	Continuous / Pulse
Welding Speed	Up to 120 mm/s (depends on material and thickness)
Control System	Integrated laser and robot control software
Power Supply	AC 220V / 380V ±10%, 50/60Hz
Gas Supply	Argon / Nitrogen / Air
Applicable Materials	Stainless Steel, Carbon Steel, Aluminum, Brass, Titanium, etc.
Application Areas	Automotive, Aerospace, Metal Furniture, Electronics, Machinery Parts
Optional Features	Dual-station workbench / Vision positioning system / Wire feeder

Applications:

Applications

The Robot Laser Welding Machine is widely used for high-precision and automated welding tasks across multiple industries. Its flexibility and accuracy make it ideal for both mass production and customized fabrication.

🔧 Main Application Fields

Automotive Industry
Welding of car body components, exhaust systems, battery trays, and seat frames with consistent quality and low distortion.

Metal Furniture & Hardware
Seamless welding of metal chairs, tables, kitchen utensils, and decorative items, ensuring smooth, aesthetic joints.

Aerospace & Aviation
Precision welding of lightweight aluminum or titanium components where strength and accuracy are critical.

Electronics & Electrical Equipment
Welding of casings, connectors, sensors, and metal housings requiring fine detail and minimal heat effect.

Machinery & Industrial Equipment
Suitable for welding complex structures, frames, and mechanical parts with multi-angle robotic movement.

Home Appliance Manufacturing
Efficient joining of stainless steel panels, brackets, and components in air conditioners, refrigerators, and kitchen appliances.

Advantages

High Precision & Quality Welds
Delivers clean, narrow, and smooth weld seams with minimal spatter and deformation - ideal for parts requiring fine aesthetics and strength.

Flexible Multi-Axis Operation
The 6-axis robot arm enables multi-angle and complex 3D welding, ensuring full access to hard-to-reach areas and curved surfaces.

Automation & Efficiency
Supports automatic loading, path programming, and continuous operation, significantly reducing labor cost and production time.

Consistent & Repeatable Results
Advanced servo control and stable laser power ensure high repeatability and consistent quality, even in mass production environments.

Versatile Material Compatibility
Works perfectly with stainless steel, carbon steel, aluminum, brass, copper, and other alloys.

Low Heat Input & Minimal Deformation
Laser welding produces a small heat-affected zone, preserving the material's structure and appearance.

Energy-Saving & Eco-Friendly
No filler wire or flux required, reducing material waste and post-processing needs.

Customizable System Integration
Can be integrated with conveyors, vision systems, or dual-station platforms for improved automation and productivity.

Why you choose desktop uv laser marking machine?

Core strengths

Self-constructed closed loop of industrial integration

✅ 1. Intelligent Automation

Automated robotic control allows continuous and stable operation - no manual adjustment needed. It supports complex paths, multi-angle welding, and programmable workflows for full production automation.

✅ 2. Superior Welding Quality

The laser beam provides concentrated energy, producing deep penetration, smooth seams, and minimal deformation - perfect for products that demand fine appearance and strong weld strength.

✅ 3. High Efficiency & Productivity

With fast movement, precise positioning, and minimal downtime, the system can run 24/7 for mass production, significantly increasing output.

15 Years of Deep Technology Accumulation

✅ 4. Flexible & Versatile

Whether flat plates, tubes, or irregular parts, the robotic arm adjusts automatically for perfect welding - suitable for diverse materials and industries.

✅ 5. Cost-Effective & Low Maintenance

Reduced labor, minimal consumables, and low operational cost make it an ideal long-term investment.

✅ 6. Future-Ready Manufacturing

Supports data monitoring, remote control, and intelligent upgrades - helping factories move toward Industry 4.0 smart production.

Products Package

Competitive advantage

If you need a custom packaging solution (like a lightweight version for air shipment), we offer engineering design services!

First Layer

(Contact Protection) 0.08mm thick stretch film
(Moisture-proof and antistatic formula) 360° sealed to block moisture and dust, preventing humidity-induced rust on precision guide rails (especially for shipping to Southeast Asia).

Second Layer

(Cushioning Layer) 5cm bubble column array
(Not ordinary bubble film) Absorbs 70% of initial impact energy.
Passes ISTA 3A vibration testing, protecting optical lenses from high-frequency vibrations caused by shipping.

Third Layer

(Energy Absorption Layer) EPE anti-collision foam
(CNC engraving) Customized to fit the body contour.
Pressure distribution >85%, eliminating the risk of LCD/control panel crushing and shattering.

Forth Layer

(Rigid Protection) 18mm plywood crate
(Fumigation treatment + steel strap reinforcement) Compressive strength >2 tons.
Forklift puncture protection, meets EU IPPC export standards (quarantine and detention exemption).

Fifth Layer

Fifth Layer
(Ultimate Fixation) 304 Stainless Steel Cable Ties
(Tension-locking design) Prevents cracking or internal displacement of the box.
