3d Robot Laser Cutting Machine
Power: 1500W/2000W/3000W

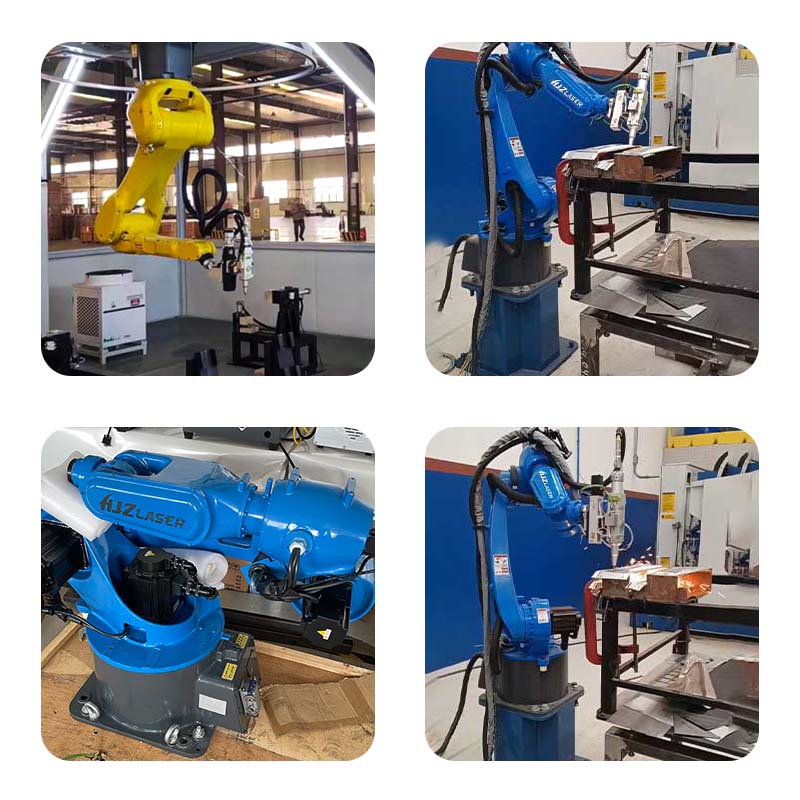

The 3D Robot Laser Cutting Machine is a state-of-the-art laser cutting system designed for high-precision, multi-angle, and multi-directional cutting of complex 3D parts. Equipped with a 6-axis industrial robot arm and a high-performance fiber laser, it delivers fast, flexible, and accurate cutting capabilities, ideal for automotive, aerospace, sheet metal, and customized fabrication industries.
product key technologies
6-Axis Robotic Arm
Enables 360° flexible movement, allowing for efficient and precise cutting of irregular, curved, and spatial surfaces.
High-Power Fiber Laser
Available in a range of power options (1000W–6000W), suitable for cutting various metals such as carbon steel, stainless steel, aluminum alloy, and more.
✅ Intelligent Control System
Adopts advanced CNC control with user-friendly interface, seamless path programming, and real-time monitoring to ensure process stability.
✅ Customizable Workstations
Flexible configurations for different part sizes and processing needs; compatible with turntables, sliders, and fixtures to enhance automation.
Specification
|
Type |
HJZ- CFR |
|
|
Arm form |
Vertical joint |
|
|
Freedom of action |
6 axis |
|
|
Maximum load |
10KG |
|
|
Maximum stroke |
1 axis |
Formal/reverse -167° - 167° wall hanging -30° - 30° |
|
2 axis |
-155° - 90° |
|
|
3 axis |
-175° - 240° |
|
|
4 axis |
-190° - 190° |
|
|
5 axis |
-105° - 130° |
|
|
6 axis |
-210° - 210° |
|
|
Maximum speed |
1 axis |
169° / S |
|
2 axis |
169° / S |
|
|
3 axis |
169° / S |
|
|
4 axis |
301° / S |
|
|
5 axis |
222° / S |
|
|
6 axis |
516° / S |
|
|
Allowable moment |
4 axis |
20N.m |
|
5 axis |
20N.m |
|
|
6 axis |
20N.m |
|
|
Allowable moment of inertia |
4 axis |
0.63kg.m2 |
|
5 axis |
0.63kg.m2 |
|
|
6 axis |
0.33kg.m2 |
|
|
Repetitive positioning accuracy |
±0.08mm |
|
|
Maximum coverage |
1454mm |
|
|
Body weight |
170KG |
|
|
Installation mode |
Ground Top loading Wall mounted |
|
|
Installation Environment |
Ambient temperature |
0-45℃ |
|
Relative humidity |
20-80％(No condensation) |
|
|
Vibration |
Below 0.5G |
|
|
Other |
Robot installation place must be far away from: flammable or corrosive liquid or gas electrical interference sources. |
|
|
IP level |
Wrist IP67 other IP54 |
|
|
Characteristic |
Compact structure, high speed, high precision, high expansibility and easy operation. |
|
|
Application occasion |
Cutting, handling, marking and polishing |
|
Applications
Automotive structural parts and body-in-white trimming
Aerospace formed parts and internal components
Metal furniture and artistic structures
Home appliance panels and sheet metal parts
Mold processing and high-precision custom cutting
Company information
Packing
Pre-sales and after sales service
Before we delivery the machine, we will test it for 24 hours to make sure everything is ok
User manual and the training video will be offered.
The fiber laser cutting machine is very easy to use.
After watching the training video, you'll know how to use it very soon.
If there is any problems, we will assist you on line by Team Viewer, or Wechat or others.Engineer door to door service is available.
Life-long after-sales service. Free consultation & guidance support.
