Industrial Laser Welder
Industrial Laser Welder
It matches with dual wire feeder, the laser spot is up to 8mm, more efficient for industrial welding.
1500W 2000W 3000W all can be matched with dual wire feeding.
This system refers to the technology of using two independent welding wires at the same time during the welding process, and accurately feeding the two welding wires into the same molten pool for welding through a special welding gun head.
Two wires share a single contact tip, closely spaced apart. They melt almost simultaneously, forming a common weld pool. This method is primarily used to maximize deposition rates.
This is 8mm laser spot:
The two welding wires can be:
The same material: For example, both are ER308L stainless steel wires.
Different materials: eg, one is a high-strength steel wire and the other is an alloy wire (such as a nickel-containing wire) to adjust the weld composition.
Different diameters: eg, one is a thicker main wire and the other is a thinner auxiliary wire.
Samples:
8mm welding effect:
10mm welding effect:
Welder machine main specs:
|
Description |
Parameters |
|
Laser wave length (nm) |
1080 |
|
Working mode |
Continuous and pulse |
|
Laser output power (w) |
1500/2000W/3000W |
|
Power adjustable range(%) |
10-100 |
|
Bandwidth of spectrum(3db) |
3-5nm |
|
Short time power stability(%) |
±1 |
|
Long term power stability(%) |
±2 |
|
Beam quality BPP (mmxarad) |
1.2-1.5 |
|
Laser on time(μs) |
50-100 |
|
Laser off time(μs) |
50-100 |
|
Frequency of modulation (KHz) |
10 |
|
Indicating red light power (μW) |
400 |
|
Optical fiber Cable Length(m) |
10 |
|
Output fiber core diameter(μm) |
50 |
|
Bending radius of the optical fiber(mm0 |
175 |
|
Mode of output |
integrated with the gun head |
|
Sustained light time(s) |
Light out 60s, light off 60s |
|
Operating ambient temperature(ºC) |
10-45 |
|
Relative humidity of the working environment(%) |
10-85 |
|
Input voltage |
220/380V /50HZ/60HZ |
|
Laser cooling mode |
Phase change heat dissipation |
|
Gun head cooling mode |
Water cooling |
|
Storage temperature(ºC) |
-10-60 |
|
Laser source weight |
<100 |
|
Connection interface type |
QBH |
|
Volume (m3) |
<1.1 |

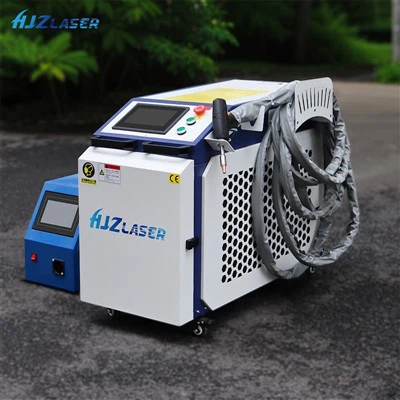

Whole machine:
