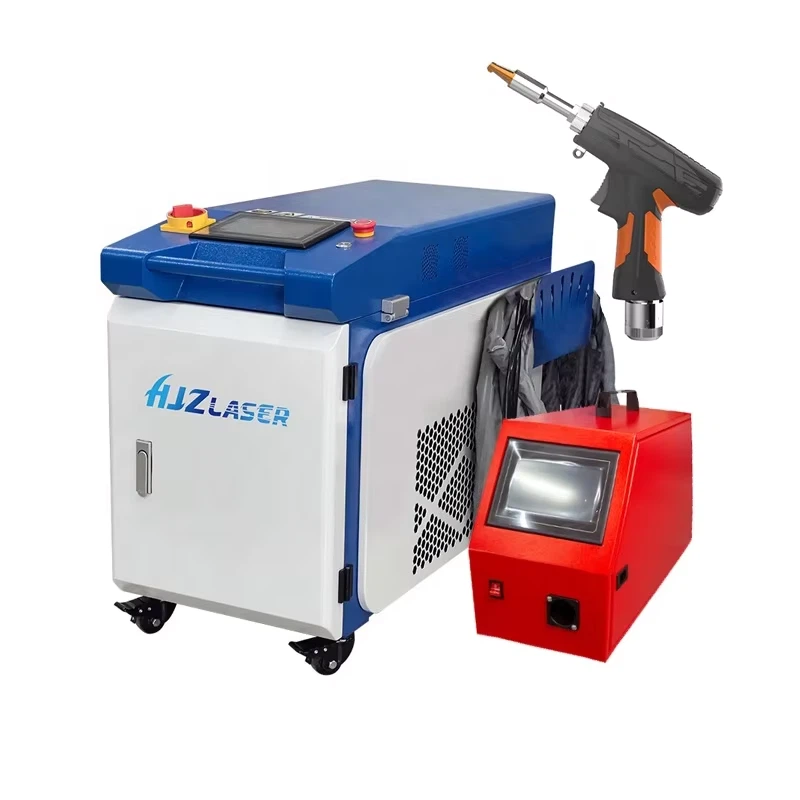

1500w Laser Welding Machine

1500W  laser welding machine

1. Ergonomic and User-Friendly Design
Lightweight Structure: Optimized weight distribution reduces operator fatigue during prolonged use.

Compact and Balanced: Easy to maneuver in tight spaces or for complex weld paths.

2. High Precision and Stability
Stable Energy Output: Ensures consistent weld bead quality with minimal spatter.

Precision Focus Control: Adjustable spot size (e.g., 0.5–3mm) for versatile applications, from fine seams to deep penetration.

3. Enhanced Safety Features
Anti-Collision Protection: Automatic shutdown upon impact detection to protect the gun and workpiece.

Thermal Management: Built-in cooling system prevents overheating during continuous operation.

Radiation Shielding: Complies with laser safety standards (Class I/IV protections).

4. Versatile Material Compatibility
Wide Material Range: Effective on stainless steel, carbon steel, aluminum, copper, and alloys.

Reflective Metal Mastery: Specialized optics minimize reflection risks when welding copper or brass.

5. Ease of Integration and Operation
Plug-and-Play Connectivity: Compatible with mainstream laser sources (e.g., 1000W–3000W fiber lasers).

Intuitive Controls: User-friendly interface for adjusting parameters (power, speed, pulse frequency) via the main console.

6. Durability and Low Maintenance
Robust Construction: Industrial-grade materials resistant to wear, spatter, and thermal stress.

Modular Design: Quick-replacement components (e.g., protective lenses, nozzles) minimize downtime.

7. Adaptive Welding Modes
Multiple Operating Modes: Supports continuous wave (CW), pulsed, and hybrid welding for diverse joint types.

Seam Tracking: Optional vision-asisted systems for automated path guidance.

Welding wire of 0.8/1.0/1.2/1.6 and other specifications can be used

Laser Source： Continuous fiber laser source(Raycus/Max)

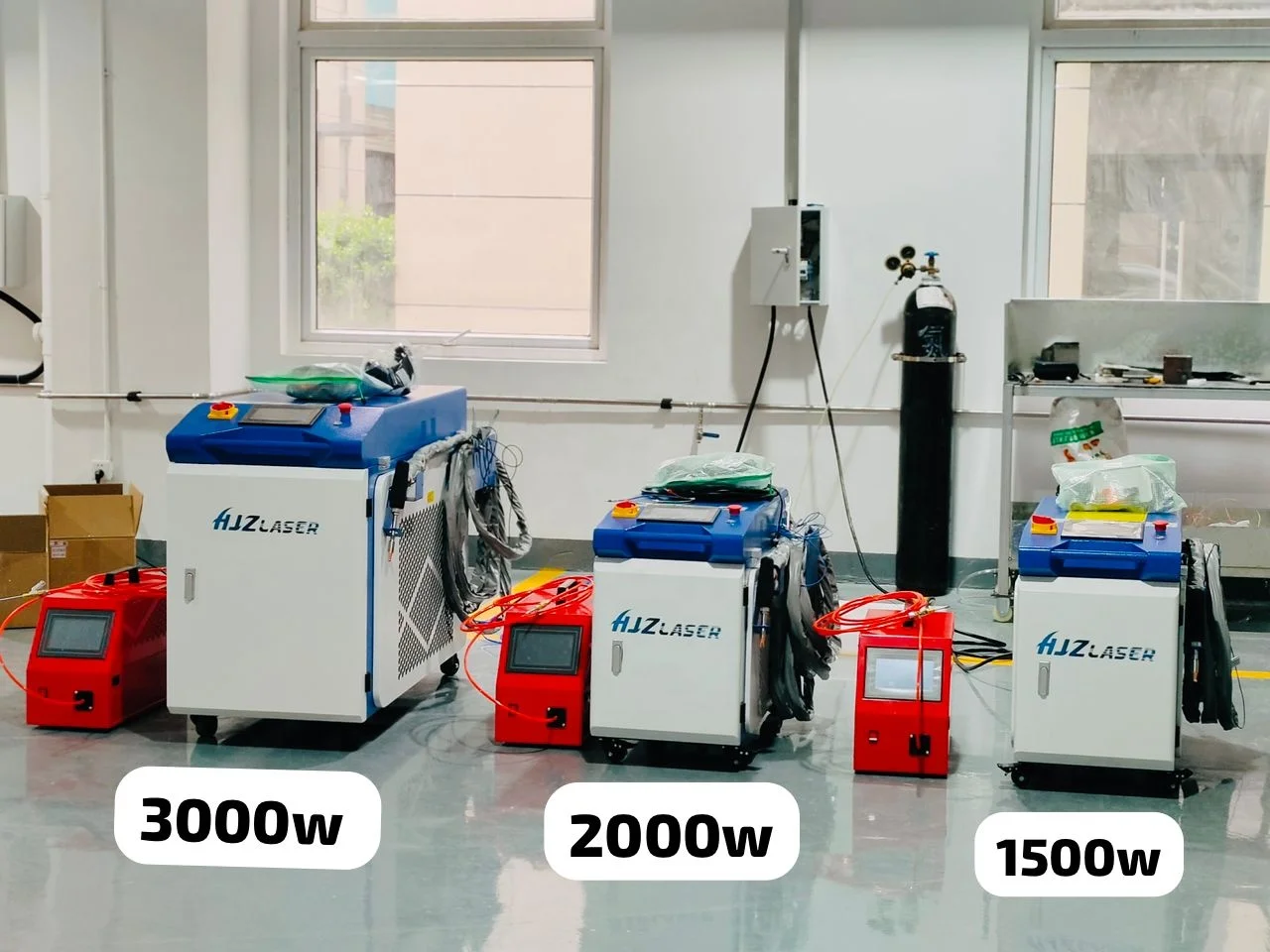

Laser power：1500/2000W/3000W

Model：HJZ-HWD

Supply voltage：Single-phase 220V/Three-phase 380V

Machine power consumption：7KW/9KW/12KW

Fiber cable length：10M

Working temperature：0℃~40°C

Working humidity：<80%

Mobile mode：Handheld

Average laser power：1500-3000 W

Power range(%)：10-100(adjustment)

Frequency(Hz)：10-20000(adjustment)

Welding thickness(mm)：1~10

Head Configuration：QBH

Cooling mode：Water cooling

Scanning width：10-120mm

★The handheld laser welding head is equipped 10M original optical fiber, which is flexible and convenient, and can realize outdoor welding;

★The handheld laser welding machine is equipped with a special welding nozzle that can weld any part of the workpiece at any angle;

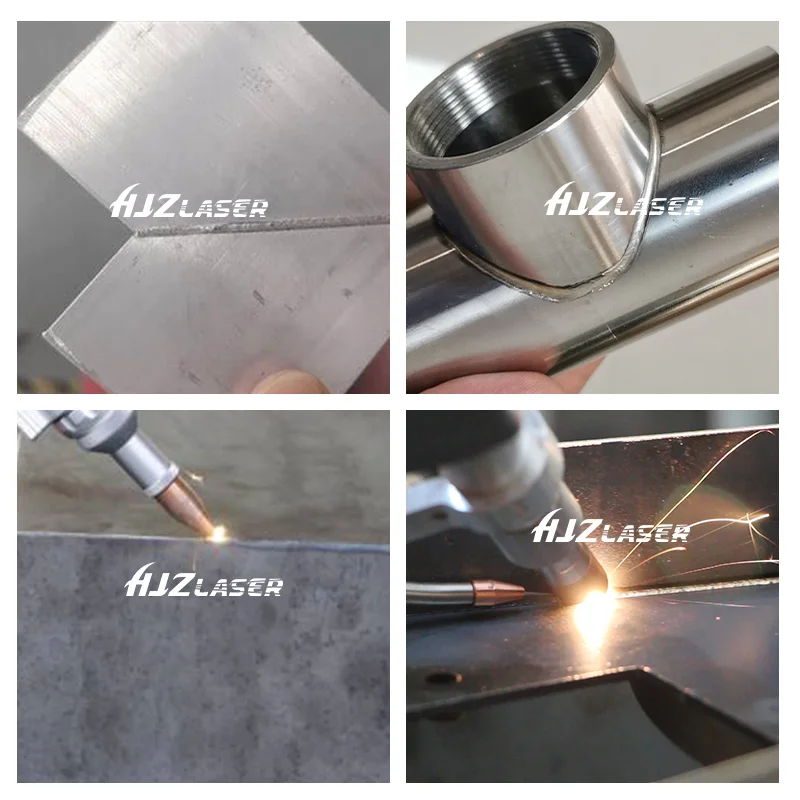

★The handheld laser welding machine has beautiful welds and strong welding; suitable for tailor welding, stack welding, irregular shape welding, etc.;

★The handheld laser welding machine is highly functional and suitable for various working environment scenarios; it has proprietary laser safety operation protection functions and is easy to learn and operate;

★Handheld laser welding machine can weld stainless steel, carbon steel, aluminum alloy, galvanized sheet, wire filler welding; can be used in hardware, elevators, home appliances, advertising, shelves, furniture, lamps, doors and windows, chassis cabinets, kitchenware, kitchen and bathroom and other industries.

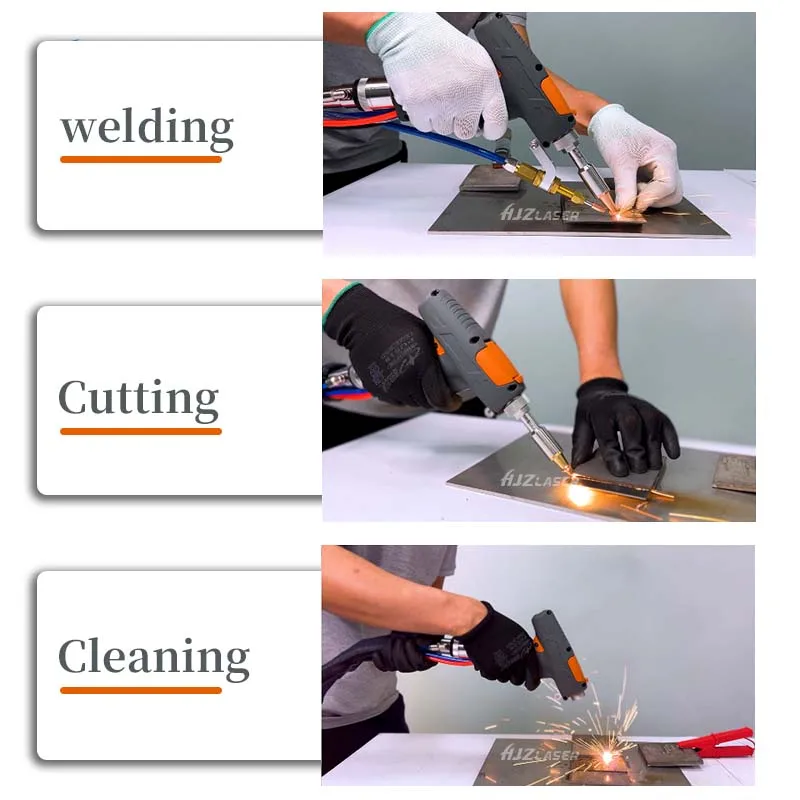

Multifunctional handheld laser welding machine is widely used in cabinets, kitchens and bathrooms, stair elevators, shelves, stainless steel doors and windows, distribution boxes, stainless steel furniture and other fields. It can process stainless steel plates, iron plates, aluminum plates and other metal materials. At the same time, it can also cut certain thin metal materials and clean rust, dirt and other residues on the metal materials.

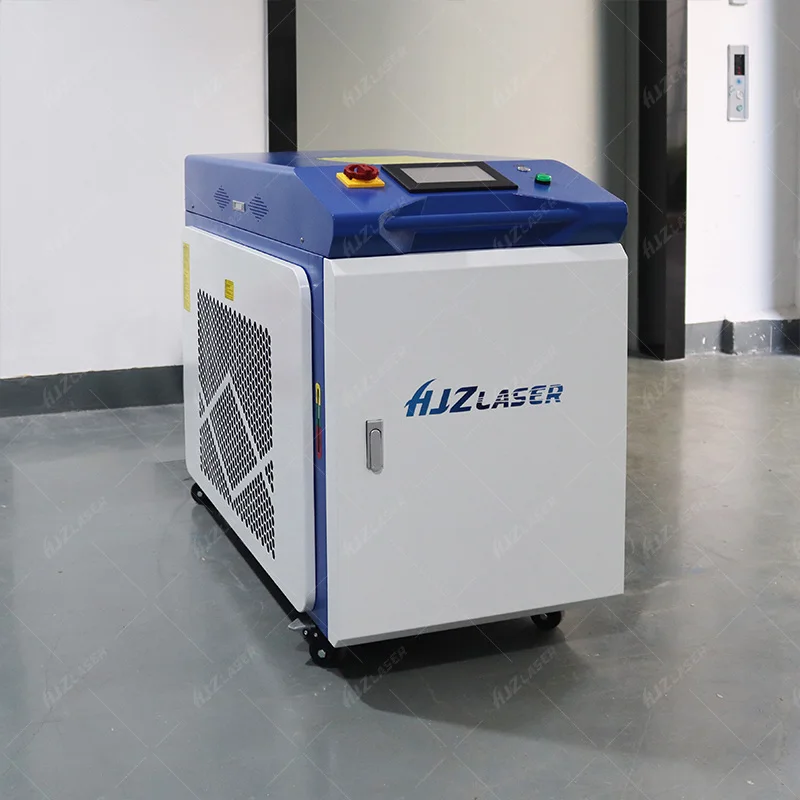

The laser generator, chiller, and control system are all integrated into a cabinet with a total weight of about 120 kilograms. There are pulleys underneath the cabinet, so it can be easily moved to any location in the production workshop and can also be used on the construction site. Easy to move, plug and play (available in 380V and 220V standards).
