Fiber Laser 30 Watt

MODEL: HJZ-DB-01 POWER: 20W/30W/50W

Send Inquiry

fiber laser 30 watt

product-800-800

Products Description

Our 30W Fiber Laser Machine is a compact and high-precision marking solution designed for superior performance and reliability. Utilizing a state-of-the-art fiber laser source from IPG, it delivers a concentrated beam for exceptionally clean, permanent, and high-contrast marks on a wide range of materials. With its user-friendly software and robust industrial design, this machine is built for seamless integration into production lines, ensuring efficient and consistent operation 24/7. It is the ideal choice for industries requiring fine detailing, precise serial numbers, QR codes, and logos.

What fiber laser 30watt Machines Can give you?

1.High-Quality Laser Source: Equipped with an imported IPG fiber laser, ensuring stability and a long operational lifespan of 100,000 hours.

2.Exceptional Precision: Achieves fine and intricate markings with pinpoint accuracy.

3.High Speed: Marks codes and text in milliseconds, significantly boosting production efficiency.

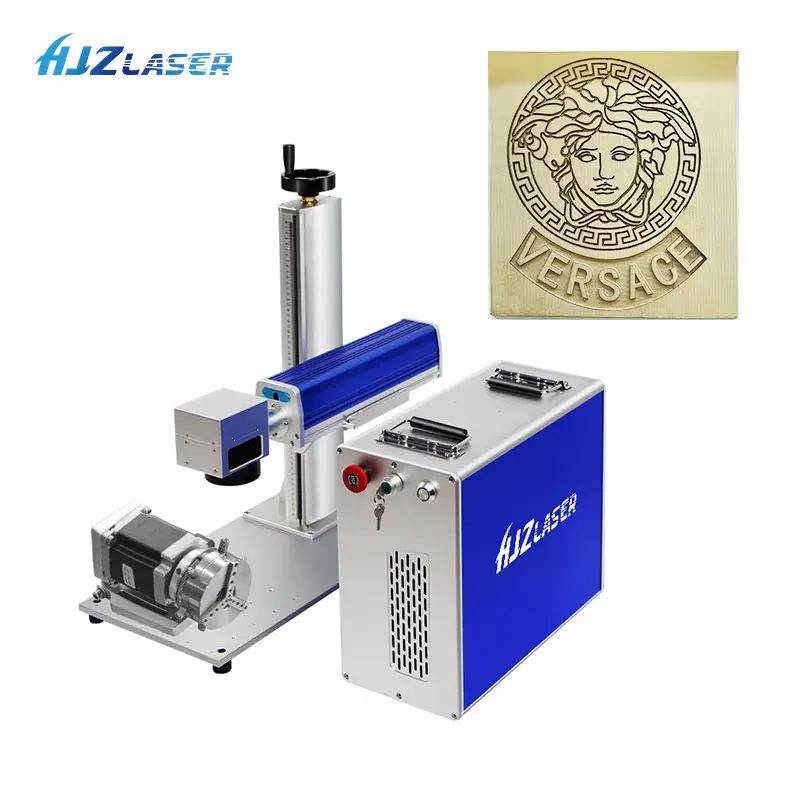

Machine real Picture-Desktop Blue One(upgrated)

4.Wide Material Compatibility: Perfect for metals (stainless steel, aluminum, gold), plastics, ceramics, and coated materials.

5.Low Maintenance: Solid-state design requires no consumables like lenses or gases, minimizing operating costs.

6.Easy to Operate: Intuitive software allows for quick job setup and editing, even for beginners.

Products Specifications

Parameter	Specification
Item/Model	HJZ-DB-01 / HJZ-DB-04
Laser Power	20W/30W/50W/100W/200W
Laser source	Raycus(Germany IPG/China Ravcus/MAX/JPT Mopa color marking for optional)
Laser type	Fiber laser
Laser Wavelength	1064 nm
Graphic Format Supported	DXF, PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO
Marking speed	≤8000mm/s
Max Marking Depth	≤0.4mm
Marking lines	0.06-0.1 marking lines(in the marking area)
Minimum line width	0.06mm
Minimum character	0.15mm
Resolution ratio	0.01mm
Machine Dimensions	750 × 380 × 750 mm/ 8807001190mm
Weight	55kg/100kg
Accessories	Rotary/Protection glasses/outside red light/night light and other optional customized parts and soon.

Applications:

Product Positioning

This versatile 30W laser is perfect for creating permanent marks on:

①High-end medical device identification

Titanium alloy marking on surgical knives (no thermal deformation), UDI codes on polymer materials for medical catheters (non-toxic and volatile)

product-800-800

②Ear tags marking

product-800-800

③Jewelry Marking and Cuttiing

product-800-800

Advantages

Our Aluminium Laser Engraving Machine is designed with advanced technology to deliver precision, durability, and efficiency for a wide range of industrial and commercial applications.

☑️Large Working Area

Unlike standard laser engravers with a limited marking field (typically 110×110mm), our machine offers an extended working area up to 300×300mm, making it ideal for engraving large plates, product logos, and oversized components.

☑️ Exceptional Marking Quality

Equipped with an top brand laser source, the machine generates a fine and stable laser beam. Combined with precision linear guides, it guarantees seamless large-format engraving and superior marking clarity.

☑️Deep Engraving Capability

Depending on the material, the engraving depth can reach up to 0.5mm, perfectly meeting the requirements for industrial deep engraving and permanent marking.

☑️High Precision

With an accuracy of up to 0.001mm, this laser engraving machine ensures detailed and flawless results, even on complex designs and micro text.

☑️Long Service Life

The laser source features a lifespan of over 100,000 working hours, allowing continuous operation for 8–10 years without performance loss.

☑️Low Maintenance & Easy Operation

No consumables are required, reducing long-term costs.

No optical path adjustment needed, ensuring stable operation.

Integrated air-cooling system for reliable performance.

Easy installation, with training videos and remote support provided.

☑️Energy Efficient

The system consumes as little as 0.5kW per hour, making it a cost-effective engraving solution for both small workshops and mass production environments.

Machine details:

Aluminium Laser Engraving Machine

Laser Source

Internationality famous brand laser source;

Good output laser beam quality;

High reliability;

Long life span up to 10,0000 hours, maintenance free.

Scanning Galvanometer

Top brand ZBTK High speed and high quality scanning head.

Focus Lens

Adopt quartz F-theta Lens;

Higher transmission;

Different working areas avaliable,110*110mm, 175*175mm, 300*300mm.

Power Supply

High-quality industrial power unit engineered for laser equipment

Guarantees stable and reliable output for precise engraving

Integrated voltage protection system to safeguard components

Durable and long-lasting, ideal for continuous operation

Control Button

Ergonomic design with a clear and intuitive interface

Effortless operation, suitable for both beginners and professionals

Safe and reliable controls to minimize operational risks

Sealed and dust-proof construction to ensure long-term durability

Workbench

Precision aluminium workbench designed for stability and durability

Flat and smooth surface ensures high engraving accuracy

Compact structure saves space while supporting heavy-duty use

Adjustable processing direction for greater flexibility in different applications

Column

Equipped with an adjustable height ruler, maximum height up to 50cm

Enables precise control of the laser head position

Ensures adaptability for engraving materials of different thicknesses

Wiring Layout

Uses extra-thick industrial-grade wiring for enhanced safety;

All cables are neatly organized and clearly labeled for easy identification;

Simplifies troubleshooting and maintenance in case of any issues;

Designed for stable performance and flexible control.

Samples:

product-800-800 product-404-404

Why you choose desktop Fiber laser marking machine?

Core strengths

Self-constructed closed loop of industrial integration

Integrated Industrial Design: Our Aluminium Laser Engraving Machine is built with a self-contained, closed-loop industrial system, ensuring stable performance and consistent quality across all applications.

Compact & Space-Saving: The machine combines multiple components into a highly integrated chassis, allowing it to fit seamlessly on a desk, workbench, or in limited workshop spaces. This makes it an excellent choice for laboratories, studios, and production lines where every square meter counts.

Portable & Easy to Deploy: With its plug-and-play setup, the system requires minimal installation effort. Many models come with caster wheels, enabling users to relocate the machine quickly between different workstations and maximize equipment utilization.

a0ad41396389ea9989d8c008ded64776

15 Years of Deep Technology Accumulation

Cost-Effective & Flexible: Our aluminium laser engraving machine offers a lower upfront investment compared to large automated systems, making it the perfect solution for small-batch manufacturing, research & development, and prototyping. With high flexibility and an excellent return on investment, it is well-suited for businesses seeking efficiency without excessive costs.

Built-In Safety Features: Operator protection is a priority. The machine is equipped with a fully enclosed cover, radiation-resistant viewing window, and interlock safety mechanisms. These features prevent laser leakage, minimize dust exposure, and ensure safe operation without requiring additional protective barriers.

Tailored for Specialized Applications: Beyond standard engraving, this system is designed for research projects, material testing, prototype development, and precision small-scale production. It is particularly effective for industries that require customized engraving, such as personalized gifts, medical device labeling, and other high-value niche markets.

Products Package

Competitive advantage

If you need a custom packaging solution (like a lightweight version for air shipment), we offer engineering design services!

First Layer – Contact Protection

Wrapped with 0.08mm industrial-grade stretch film, fully sealed in 360° coverage. Special moisture-proof and anti-static treatment to block dust and humidity, preventing rust and corrosion on precision components such as guide rails. Particularly effective for long-distance shipping and humid climates (e.g., Southeast Asia).

Second Layer – Cushioning Protection

Reinforced with a 5cm thick bubble column structure (far stronger than standard bubble wrap). Capable of absorbing up to 70% of external impact energy, ensuring superior shock resistance. Successfully passed ISTA 3A vibration testing, safeguarding optical lenses and sensitive parts from high-frequency transport vibrations.

Third Layer – Energy Absorption

Protected with EPE high-density anti-collision foam, precisely cut with CNC technology to match the machine's contours. Provides over 85% pressure distribution, effectively preventing damage to delicate parts such as the LCD screen and control panel.

Fourth Layer – Rigid Protection

Secured inside a 18mm thick plywood crate, strengthened with fumigation treatment and steel straps. Delivers a compressive strength of more than 2 tons, offering excellent resistance against forklift punctures. Fully compliant with EU IPPC export standards, ensuring smooth customs clearance without quarantine delays.

Fifth Layer – Final Fixation

Reinforced with 304 stainless steel cable ties featuring a tension-lock mechanism. Prevents vibration, cracking, or internal displacement during long-distance transportation.
